The Mechanics of Precision: How a Paperboard Slitter Machine Works

Inside the Cut: Understanding the Technology Behind a Paperboard Slitter Machine

A Paperboard Slitter Machine may seem straightforward in its function—it cuts cardboard—but the technology that enables its precision and efficiency is remarkably sophisticated. Understanding the mechanics of how it works reveals why it has become such an indispensable tool for industries requiring high-quality finishing. From material input to the final perfectly cut strip, each stage is a feat of modern engineering.

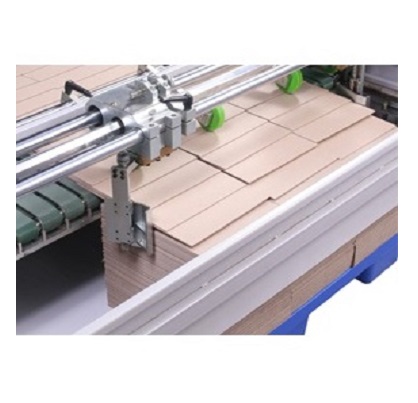

The process begins at the feeding stage. For many jobs, an automatic feeding system is employed. This system uses rollers and guides to pull a large sheet of book board or cardboard from a stack and feed it smoothly into the machine. The key here is consistency; the auto-feeder ensures each sheet enters the cutting area at the same speed and alignment, which is the first step in achieving a uniform result. For oversized or unusual sheets, the operator can switch to manual feeding, demonstrating the machine's inherent flexibility.

Once the board enters the machine, it approaches the heart of the operation: the slitting unit. This unit houses a series of sharp, durable slitter knives, typically arranged in pairs (top and bottom) to create a clean shearing action. In an advanced Paperboard Slitter, these knives are not in a fixed position. Each pair is mounted on a carriage that is controlled by an individual servo motor. The operator uses a touch screen control panel to input the desired widths of the final strips. The machine's central computer then translates these parameters into precise commands for each servo motor.

This is where the magic happens. The servo systems move each knife set along a rail to its exact programmed position with incredible speed and accuracy—often within a fraction of a millimeter. When the cardboard sheet passes through, the rotating knives make multiple, simultaneous cuts, dividing the large sheet into several narrower strips in a single pass. The precision of the servo motors ensures that every strip is identical in width, from the first sheet to the last. The smooth, clean edge is a result of the high-speed shearing action and the stability of the machine's robust frame.

After being cut, the finished strips exit the machine, ready for the next stage of production. The entire process, from feeding to cutting, is seamless and incredibly fast. By combining robust mechanical design with advanced servo control and intuitive software, the Paperboard Slitter Machine transforms a challenging task into a simple, automated, and highly precise operation, delivering results that are impossible to replicate by hand.
